Manufacturing Capabilities
The continuous upgrading of the process manufacturing capacity is our most competitive advantage. The upgrading of manufacturing capacity also means providing customers with the most advanced production technologies and reducing costs for customers.

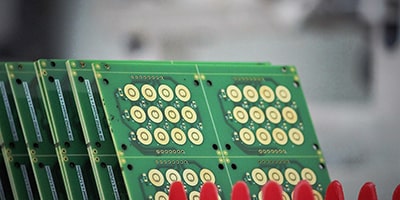

Rigid PCB Manufacturing Capabilities
Layers: 1-30
MOQ: 1 pcs
Materials: FR4, Aluminum, etc.
Laminate: Shengyi, Isola, etc.
Thickness: 0.1-8.0mm
Max Size: 533.4 * 762mm
Lead Time: 24 Hours – 9WD
Types: LED PCB, HDI PCB, Flexible PCB, Rigid-flex PCB, High Tg PCB, etc.

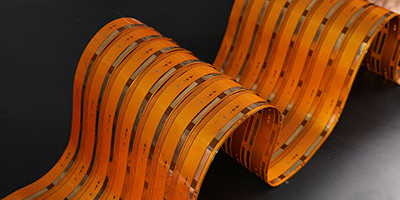

Flexible PCB Fabrication Capabilities
Layers: 1-10
MOQ: 1 pcs
Laminate: Dupont PI, Shengyi PI
Minimum Hole Size: 0.1mm
Thickness: 0.05mm+/-0.02mm
Max Size: 480*4000mm
Panelization Size: 250*510mm
Lead Time: 24 Hours – 9WD
Solder Mask Color: Green, White, Blue, Black, Red, Yellow, etc.

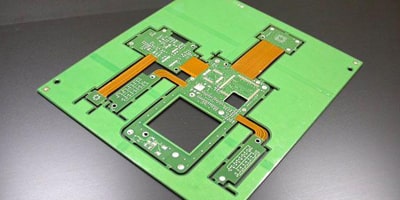

Rigid-Flex PCB Fabrication Capabilities
Layers: 1-12
Laminate: Dupont PI, Halogen Free
Thickness: 0.20 – 5.50 mm
Max Size: 610X640mm
Impedance Control: +/-10%
Surface Finish: HASL(LF), ENIG, Immersion Tin/Silver
Solder Mask Color: Green, White, Blue, Black, Red, Yellow, etc.

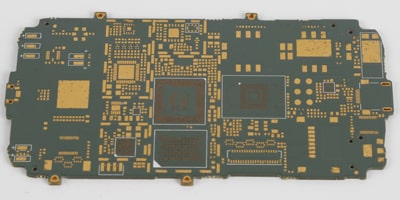

HDI PCB Manufacturing Capabilities
Layers: 4-24 layer
MOQ: 1 pcs
HDI Structures: 1+N+1, 2+N+2, 3+N+3
Quality Grade: Standard IPC 2
Build Time: 2 days – 5 weeks
Material: FR4 standard Tg 140°C | FR4 High Tg 170°C, etc.
Board Size: Min 6*6mm | Max 457*610mm
Board Thickness: 0.4mm – 3.0mm

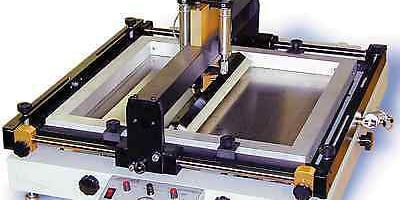

PCB Stencil Fabrication Capabilities
Technology: 100% laser cut
Types: Framed, Frameless, Electroformed, Nano Coating
Material Used: Stainless Steel
Stencil Thickness: 0.06 ~ 0.3 mm
Minimum Cut Width: 0.05 mm
Maximum Size: 736 X736 mm
Aperture Tolerance: within 0.007mm
Allow for Fiducial Data: Yes
Allow for Panelized Data: Yes
Delivery: 1 ~2 Day

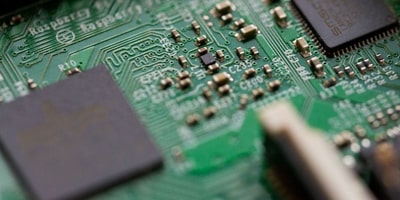

PCB Assembly PCBA Capabilities
PCB Types: Rigid PCB, Flexible PCB, Rigid-flex PCB, Multilayer PCB, etc.
PCB Size: 50*50mm – 774*710mm
Material: Rigid | Metal Core | FPC
PCB Shape: Any
Quantity: From Prototype to Big Volume, No MOQ
Assembly Services Types: Quick Turn and Fast Prototype PCB Assembly, Turnkey Service
