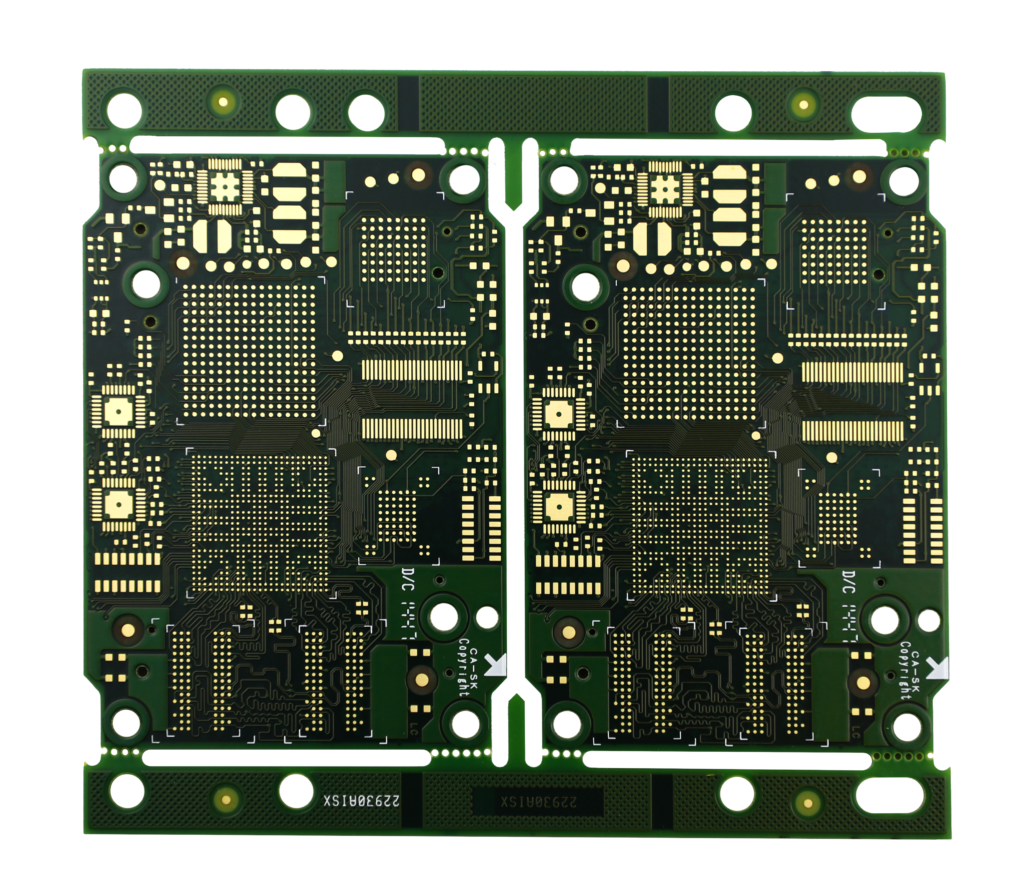

HDI PCB Fabrication
PCBBOX is offering HDI PCBs to global customers with excellent quality and cost efficiency, which are widely applied in complex projects and compact devices. HDI (High-Density Interconnect) PCBs are a type of printed circuit board that features a higher density of wiring connections compared to traditional PCBs with advantages:
1. Miniaturization: HDI PCBs enable the design of smaller and lighter electronic devices.
2. Higher Performance: The high-density interconnections improve signal integrity and reduce signal loss.
3. Increased Functionality: More components can be placed on the board, allowing for more complex and powerful devices.
| Feature | Capability |
| Quality Grade | Standard IPC 2 |
| Number of Layers | 4 – 24layers |
| Order Quantity | 1pc – 10000+pcs |
| Build Time | 2days – 5weeks |
| Material | FR4 standard Tg 140°C,FR4 High Tg 170°C, FR4 and Rogers combined lamination |
| Board Size | Min 6*6mm | Max 457*610mm |
| Board Thickness | 0.4mm – 3.0mm |
| Copper Weight (Finished) | 0.5oz – 2.0oz |
| Min Tracing/Spacing | 2.5mil/2.5mil |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Surface Finish | HASL – Hot Air Solder Leveling Lead Free HASL – RoHS ENIG – Electroless Nickle/Immersion Gold – RoHS Immersion Silver – RoHS Immersion Tin – RoHS OSP – Organic Solderability Preservatives – RoHS |
| Min Annular Ring | 4mil, 3mil – laser drill |
| Min Drilling Hole Diameter | 6mil, 4mil – laser drill |
| Max Exponents of Blind/Buried Vias | stacked vias for 3 layers interconnected, staggered vias for 4 layers interconnected |
| Other Techniques | Flex-rigid combination Via In Pad Buried Capacitor (only for Prototype PCB total area ≤1m²) |
Printed circuit board technology has been evolving to meet the demands of smaller and faster products.HDI boards are more compact and feature smaller vias, pads, copper traces, and spaces. As a result, HDI allows for denser routing, making the PCB lighter, more compact, and with fewer layers. Runrays are right here to serve you with outstanding HDI PCB manufacturing servcies.
